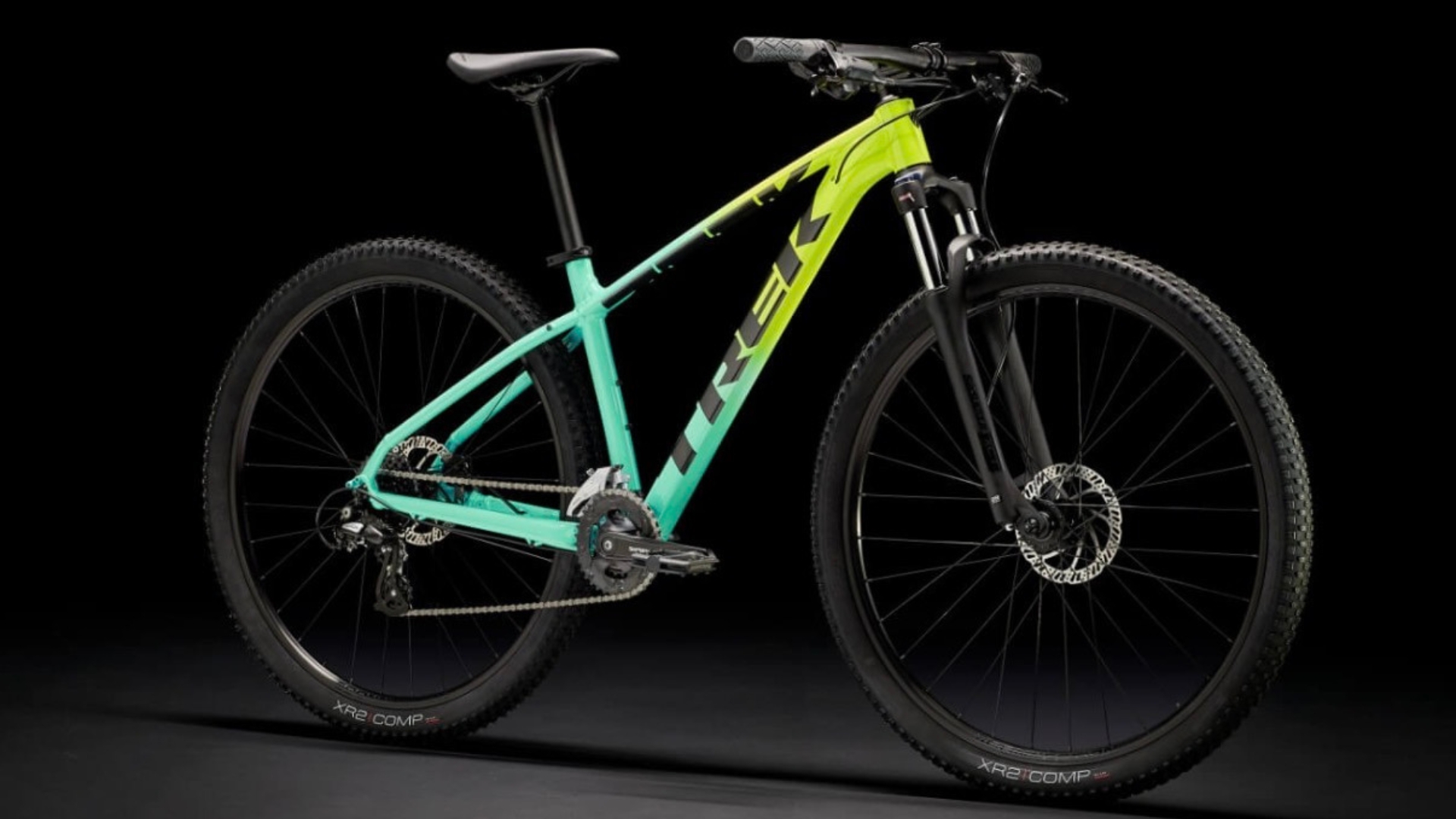

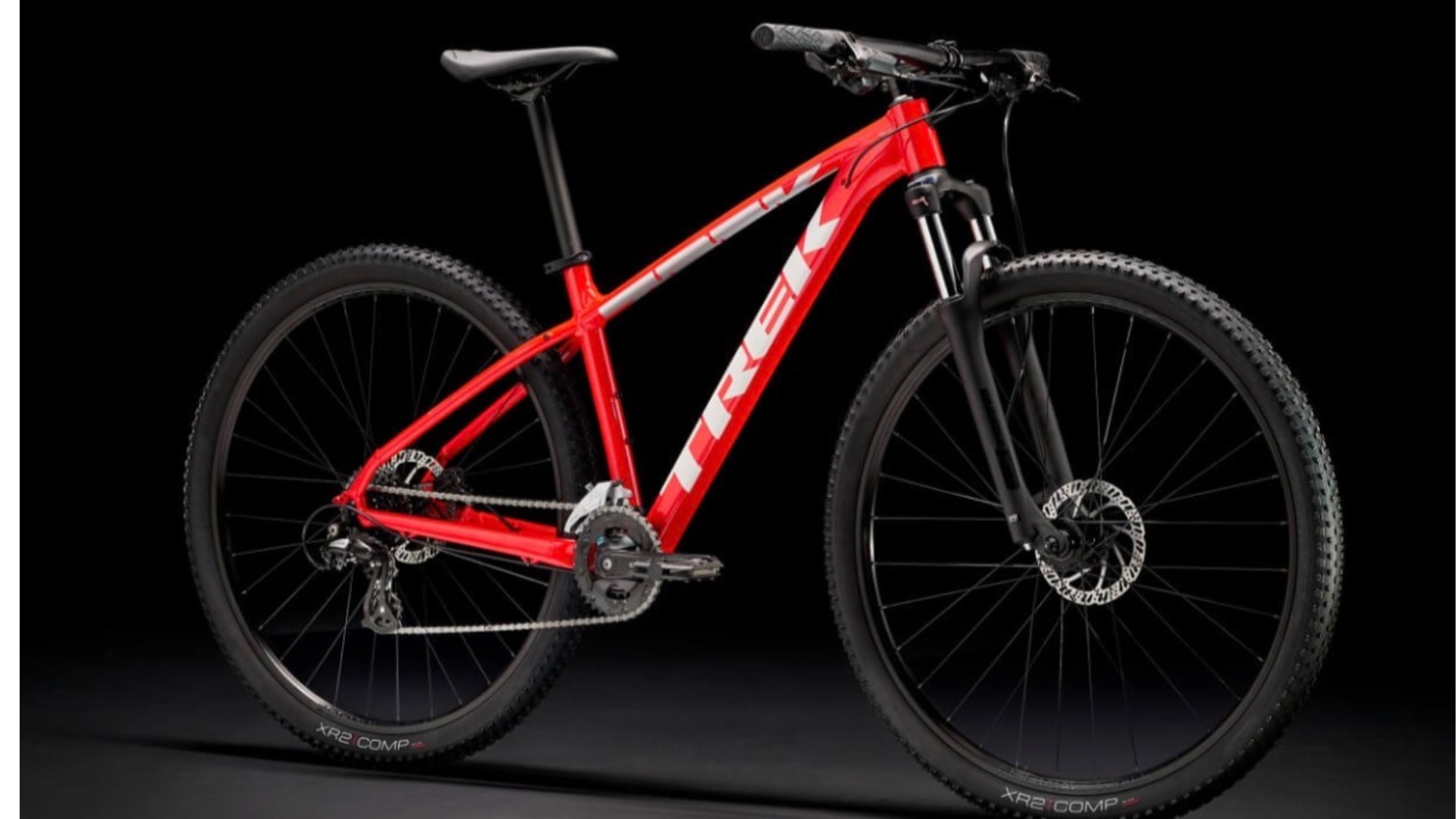

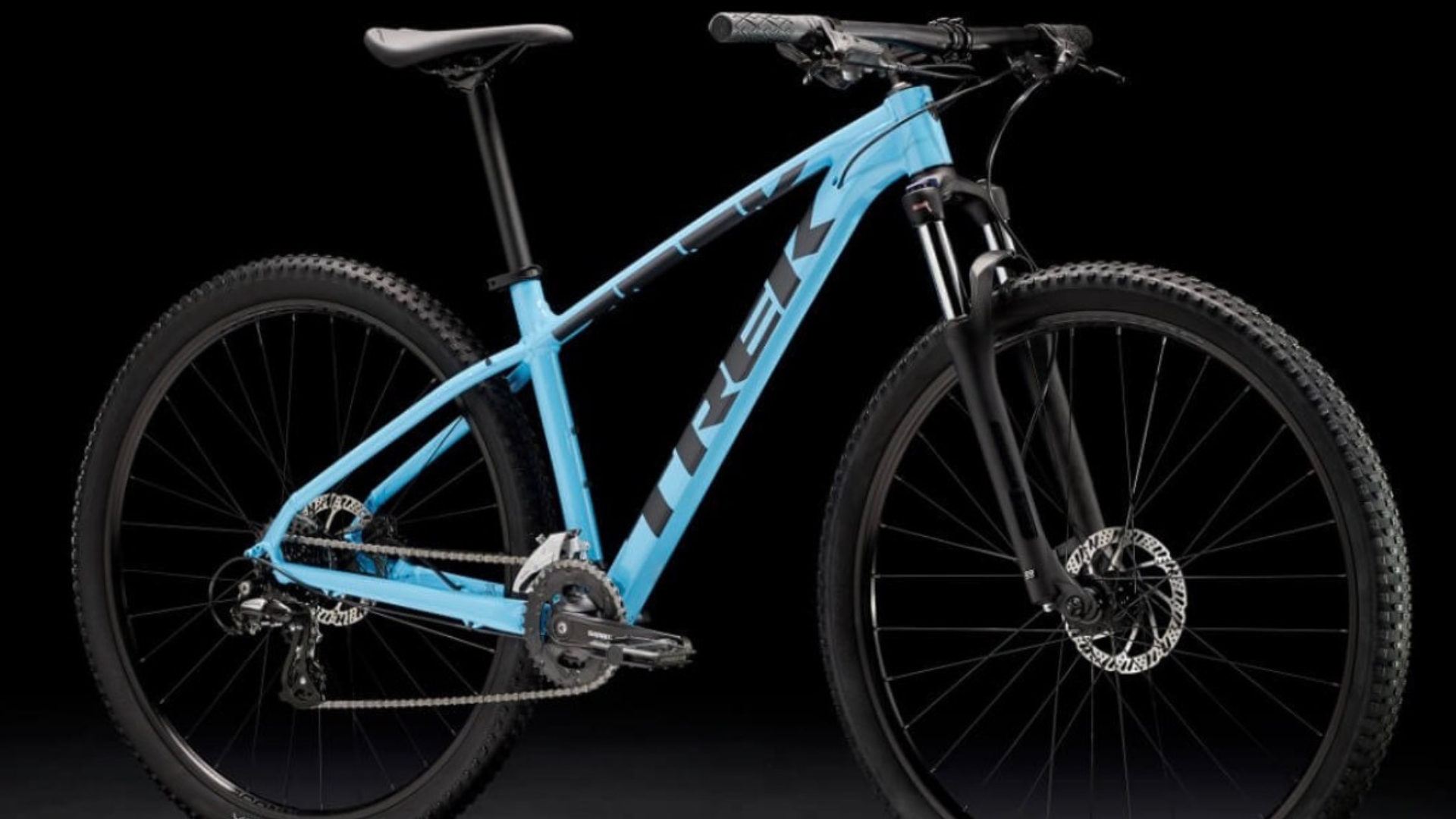

The Trek Marlin 5 (2022) represents a pivotal moment in Trek’s entry-level mountain bike lineup. Known as the “Gen 2” model, this iteration successfully bridged the gap between a rugged off-road machine and a versatile daily commuter. It remains one of the most popular bikes globally for those entering the sport due to its balance of “big brand” reliability and budget-friendly components. Below is a comprehensive breakdown of its design, technical specifications, and performance characteristics.
1. Design and Philosophy
The Marlin 5 is built on Trek’s Alpha Silver Aluminum frame. The 2022 model stands out for its sleek aesthetic, which mimics the look of high-end XC (cross-country) race bikes.
Internal Cable Routing: One of the most premium features at this price point is the internal routing for gear and brake cables. This keeps the lines clean, protects cables from mud and grit, and prevents snagging on branches.
Versatile Mounting: Unlike dedicated race bikes, the Marlin 5 includes integrated mounts for a rear rack and a kickstand. This makes it an ideal “hybrid” for students or office workers who want a bike they can ride to work on Friday and take to the trails on Saturday.
Smart Wheel Sizing: Trek employs “Smart Wheel Sizing,” meaning the wheel size is tied to the frame size. Smaller frames (XXS–S) come with 26-inch or 27.5-inch wheels and a curved top tube to make mounting and dismounting easier for shorter riders. Larger frames (M–XXL) come with 29-inch wheels for better momentum and obstacle rollover.
2. Technical Specifications
The 2022 model saw a significant update to the drivetrain, moving away from the older 3x (three chainring) systems to a more modern and reliable setup.
- Drivetrain and Shifting
- Configuration: 2×8 speed (16 total gears).
- Shifters: Shimano Altus M315.
- Front Derailleur: Shimano Altus M315.
- Rear Derailleur: Shimano Altus M310.
- Cassette: Shimano HG200, 12-32, 8-speed.
The 2×8 drivetrain is a major highlight. By removing the third chainring, Trek bike reduced weight and complexity while still providing a wide enough gear range to tackle steep climbs and fast flats.
- Suspension and Braking
- Fork: SR Suntour XCT 30 (Coil Spring).
- Travel: 100mm (80mm on XS size).
- Brakes: Tektro HD-M275 hydraulic disc brakes.
The hydraulic disc brakes are a game-changer for beginners. Unlike mechanical rim or disc brakes, hydraulics offer superior stopping power with less hand effort, performing consistently even in wet or muddy conditions.
- Wheels and Tires
- Rims: Bontrager Connection, double-wall.
- Tires: Bontrager XR2 Comp, 2.20″ width.
- The XR2 tires are versatile “small-block” tires. They provide excellent grip on hard-pack dirt and gravel but don’t feel overly sluggish when riding on pavement.
